    1R1G1B / DIP 346 P10 Led Display Module Outdoor Led Panel 7500cd/㎡

    Ask Lasest Price
    Brand Name : Vgeoo
    Model Number : VG-RD P10
    Certification : Ce/ROHS/FCC/
    Delivery Time : 7 days
    • Product Details
    • Company Profile

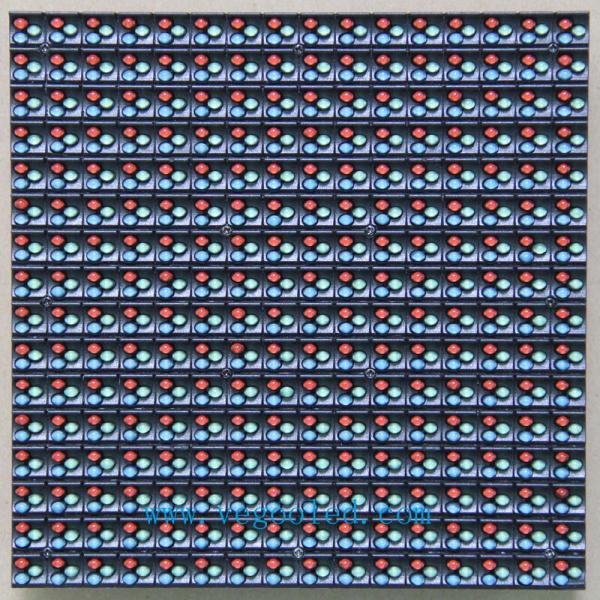

    1R1G1B / DIP 346 P10 Led Display Module Outdoor Led Panel 7500cd/㎡


    1R1G1B/DIP 346 P10 Outdoor Full color LED Display


    Description:


    1. Long-term Brightness:
    Automatic or manual adjustment of the brightness of the display.
    2. Easy Installation & Using:
    easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
    3. Convenient Servicing:
    Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion


    P10 Outdoor Full color LED Display Specification


    Product NameSpecification
    Pixel Pitch10mm
    Pixel Configuration1R1G1B/DIP 346
    Density10,000 pixel/m2
    Moduel Size(L×W)mm320mm×160mm or 160mm×160mm
    Cabinet Size(L×W×H)mm960mm×960mm×130mm
    Module Resolution32×16
    Cabinet Resolution96×96
    Driving Method1/ 4 Scan
    Driving ICMBI5124
    Brightness7500cd/㎡
    Contrast1000:1
    Brightness AdjustmentAuto and Manual
    Power ConsumptionMax Power: <850W
    Average power: <340W
    Module Weight0.5kg
    Color Temperature9500K—11500K
    Horizontal Viewing Angle140º
    Vertical Viewing Angle140º
    Signal Processing10 or 14bit
    Grey Processing1024×1024×1024
    16834×16834×16834
    Control Distancecable100m,Multimode500m,Single mode 2km
    Frame Frequency65 Hz
    Refresh Rate>1920Hz
    Control ModeSynchronous/Asynchronous
    The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    Users can choose the recommended curve or adjust it based on actual situation
    MTBF>50000 hours
    Life Span100,000 Hours
    Operating TemperatureWorking : -20 - 65 ℃
    Storage : -40 - 85 ℃
    Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    Power SupplyAC 110-220V
    Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

    Services Before-sale:


    Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.


    Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible


    Service In - sales :


    Try the best to meet the reasonable demands by clients Provisional changed .

    Keep close touch with the clients during the period if installation .

    Cooperate friendly with the clients, satisfy the clients with the best quality of led display .


    Service After-sale:


    Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.

    You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .


    Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
