Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-FD P10 |
| Certification : | CE/ROHS/FCC/ |
| Supply Ability : | 3000Sq.m |
| Delivery Time : | 3-5 days |
Quick Detail:
Pixel Pitch: 8mm
Pixel Configuration: 1R1G1B/SMD3535
Density: 15,625 pixel/m2
Moduel Size(L×W)mm: 320mm×160mm
Cabinet Size(L×W×H)mm: 960mm×960mm×130mm
Module Resolution: 40×20
Application:

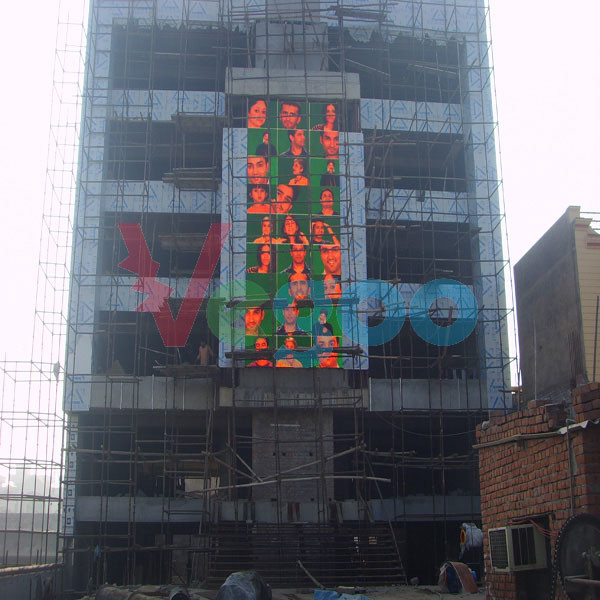

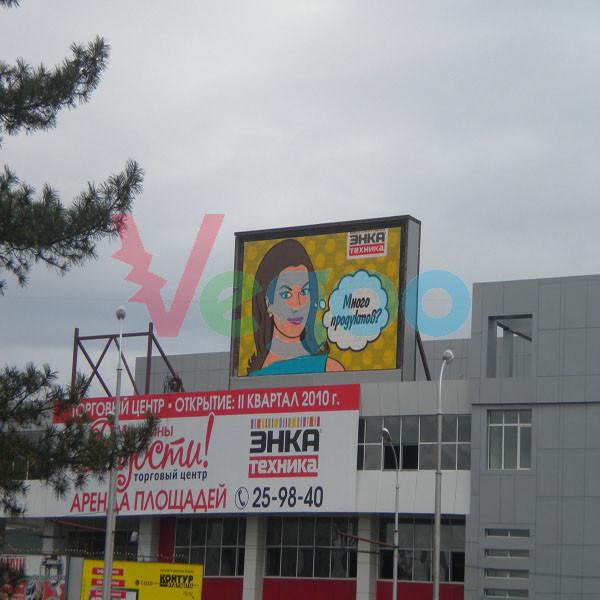

Advertising media, sports stadiums, airport station integrated
information dissemination, business establishments, public square
P8 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 8mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| Density | 15,625 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 40×20 | ||||||||||
| Cabinet Resolution | 120×120 | ||||||||||
| Driving Method | 1/ 5 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 5500/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:600W | ||||||||||
| Average power: ＜250W | |||||||||||
| Module Weight | 0.6kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our service
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.
Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
|
|
