    Outdoor Advertising Transparent LED Screen P20mm IP65 9500K - 11500K

    Ask Lasest Price
    Brand Name : Vegoo
    Model Number : VG-SD P20
    Certification : CE/ROHS/FCC/
    Supply Ability : 3000 Sq.m/ Month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

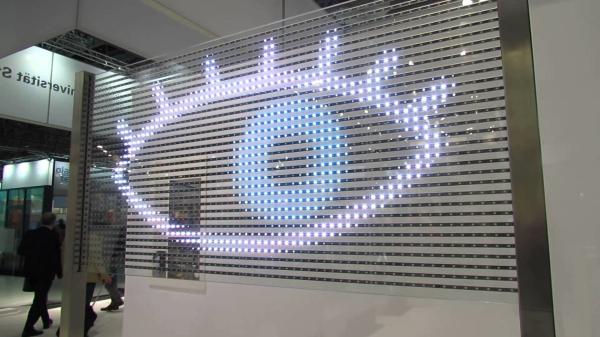

    Outdoor Advertising Transparent LED Screen P20mm IP65 9500K - 11500K


    Outdoor advertising LED display Transparent LED Screen Waterproof


    Description:


    1. Outdoor advertising LED display
    2. High brightness,stable,durable
    3. Waterproof,IP65
    4. CE,RoHS,FCC certificate


    1. Good LEDs:use Epistar DIP LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
    2. Energy saving: low electric current, high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
    3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
    4. Error detection and monitoring:it can monitor the inner temPerature,voltage,cooling fans etc and error detection automatically.


    Remote Control


    Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)


    P20 DIP 346 Outdoor Full color LED Display Specification


    Product NameSpecification
    Pixel Pitch20mm
    Pixel Configuration1R1G1B/DIP 346
    Density2,500 pixel/m2
    Moduel Size(L×W)mm960mm×17mm
    Cabinet Size(L×W×H)mm960mm×320mm×90mm
    Module Resolution48×0.85
    Cabinet Resolution48×16
    Driving Method1 Scan
    Driving ICMBI5124
    Brightness5500CD/㎡
    Contrast1000:1
    Brightness AdjustmentAuto and Manual
    Power ConsumptionMax Power: <600W
    Average power: <450W
    Cabinet Weight18kg
    Color Temperature9500K—11500K
    Horizontal Viewing Angle140º
    Vertical Viewing Angle140º
    Signal Processing10 or 14bit
    Grey Processing1024×1024×1024
    16834×16834×16834
    Control Distancecable100m,Multimode500m,Single mode 2km
    Frame Frequency65 Hz
    Refresh Rate>1920Hz
    Control ModeSynchronous/Asynchronous
    The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    Users can choose the recommended curve or adjust it based on actual situation
    MTBF>50000 hours
    Life Span100,000 Hours
    Operating TemperatureWorking : -20 - 65 ℃
    Storage : -40 - 85 ℃
    Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    Power SupplyAC 110-220V
    Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

    Upgrade Service :


    Unschedule,we will upgrade our system of products without extra formal; we’ll do our best to help users with upgrading ; the following conditions are excluded by this warranty :

    1. Without approved documents;

    2. Series code on products having been torn or changed ;

    3. Damage caused by lighting strike or electrical problems;

    4. Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents.

    5. Users or third party refit or repaired by themselves without VEGOO’s permission ;

    6. Water intrusion or corrosion caused by improper keeping or operating ;

    7. Over period of free maintenance .
