    P20 DIP 346 Outdoor Transparent LED Screen Transparent Glass Led Display

    Ask Lasest Price
    Brand Name : Vegoo
    Model Number : VG-SD P20
    Certification : CE/ROHS/FCC/
    Supply Ability : 3000 Sq.m/ Month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

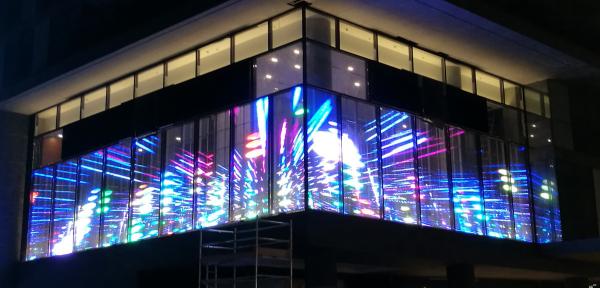

    P20 DIP 346 Outdoor Transparent LED Screen Transparent Glass Led Display

    High Transparent LED Display , Outdoor Transparent Glass LED Display


    Description:


    1. Good visualization:
    Glass based design allows the light to pass through the glass without any influence to the building structure around..
    2. Frameless structure

    Leeman glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.

    3. Easy and convenient maintenance.

    It can be maintained from inside, safer and more convenient.

    4. Saving lighting costs of the whole building.

    Besides good advertising effect, Leeman LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.

    5. Wide use range.

    Wherever the glass wall is, Leeman glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.


    P20 DIP 346 Outdoor Full color LED Display Specification


    NO:Product NameSpecification
    1Pixel Pitch20mm
    2Pixel Configuration1R1G1B/DIP 346
    3Density2,500 pixel/m2
    4Moduel Size(L×W)mm960mm×17mm
    5Cabinet Size(L×W×H)mm960mm×320mm×90mm
    6Module Resolution48×0.85
    7Cabinet Resolution48×16
    8Driving Method1 Scan
    9Driving ICMBI5124
    10Brightness5500CD/㎡
    11Contrast1000:1
    12Brightness AdjustmentAuto and Manual
    13Power ConsumptionMax Power: <600W
    14Average power: <450W
    15Cabinet Weight18kg
    16Color Temperature9500K—11500K
    17Horizontal Viewing Angle140º
    18Vertical Viewing Angle140º
    19Signal Processing10 or 14bit
    20Grey Processing1024×1024×1024
    16834×16834×16834
    21Control Distancecable100m,Multimode500m,Single mode 2km
    22Frame Frequency65 Hz
    23Refresh Rate>1920Hz
    24Control ModeSynchronous/Asynchronous
    25The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    26Users can choose the recommended curve or adjust it based on actual situation
    27MTBF>50000 hours
    28Life Span100,000 Hours
    29Operating TemperatureWorking : -20 - 65 ℃
    30Storage : -40 - 85 ℃
    31Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    32Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    33Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    34Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    35Power SupplyAC 110-220V
    36Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

    Products exchanged or returned :


    we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.


    Casual damage situation:


    We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .


    Over Guarantee time :


    You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
