    High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡

    Ask Lasest Price
    Brand Name : Vgeoo
    Model Number : VG-RD P6
    Certification : Ce/ROHS/FCC/
    Delivery Time : 7 days
    • Product Details
    • Company Profile

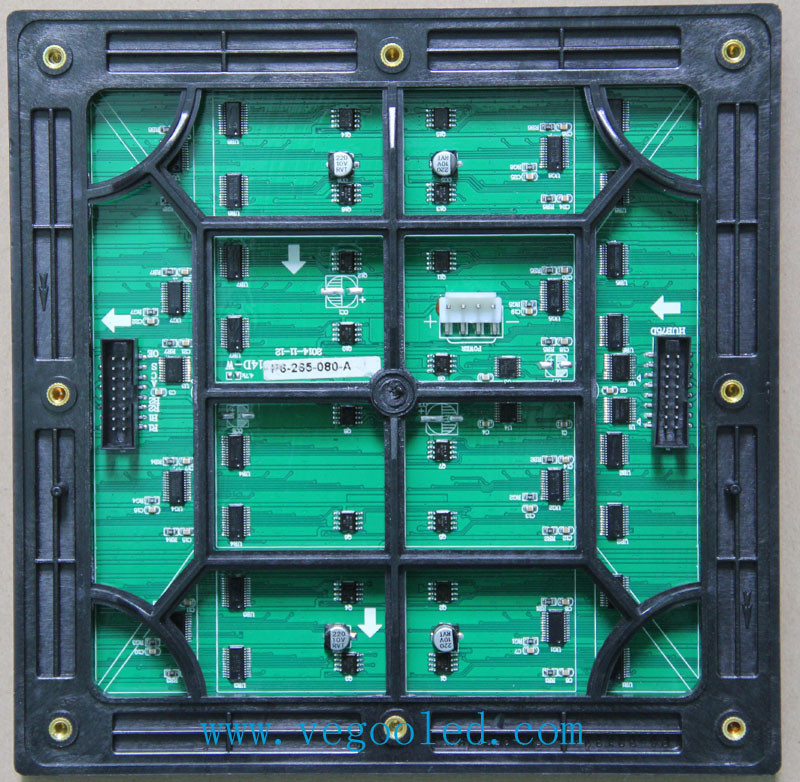

    High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡


    High brightness P6 Outdoor Full color LED Display Waterproof


    Features:

    • Easy installation design, allows for quick and convenient installation;
    • Good Waterproof ,can be used under heavy rain weather and humid area;
    • High brightness up to 7500nits, close view distance,good performance;
    • With AntiUV ray mask, the color of the mask would never change even if under exposure of UV ray;
    • Classical and stable structure and performance;
    • Auto fan and brightness;
    • The wide Angle of view
    • LED module connects to frame through magnet adsorption;
    • Show all kinds of word, text, graph, pictures, flashes, video, Different signal resources inputs such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc;

    P6 Outdoor Full color LED Display Specification


    Product NameSpecification
    Pixel Pitch6mm
    Pixel Configuration1R1G1B/SMD3535
    Density27,777 pixel/m2
    Moduel Size(L×W)mm192mm×192mm
    Cabinet Size(L×W×H)mm576mm×576mm×90mm
    Module Resolution32×32
    Cabinet Resolution96×96
    Driving Method1/8 Scan
    Driving ICMBI5124
    Brightness6500cd/㎡
    Contrast1000:1
    Brightness AdjustmentAuto and Manual
    Power ConsumptionMax Power:<545W
    Average power: <165W
    Module Weight0.244kg
    Color Temperature9500K—11500K
    Horizontal Viewing Angle140º
    Vertical Viewing Angle140º
    Signal Processing10 or 14bit
    Grey Processing1024×1024×1024
    16834×16834×16834
    Control Distancecable100m,Multimode500m,Single mode 2km
    Frame Frequency65 Hz
    Refresh Rate>1920Hz
    Control ModeSynchronous/Asynchronous
    The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    Users can choose the recommended curve or adjust it based on actual situation
    MTBF>50000 hours
    Life Span100,000 Hours
    Operating TemperatureWorking : -20 - 65 ℃
    Storage : -40 - 85 ℃
    Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    Power SupplyAC 110-220V
    Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

    High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡


    Customer Service


    1) Guarantee Time: Within one year after delivery form factory

    2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )

    3) Maintenance Mode :

    By returned maintenance , through express or by other way

    4) Response time for maintenance :


    1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;


    2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;


    3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
