    High Brightness Advertising P8 Outdoor Full Color LED Display Truck Mounted

    Ask Lasest Price
    Brand Name : Vegoo
    Model Number : VG-FD P8
    Certification : CE/ROHS/FCC/
    Supply Ability : 3000Sq.m
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    High Brightness Advertising P8 Outdoor Full Color LED Display Truck Mounted

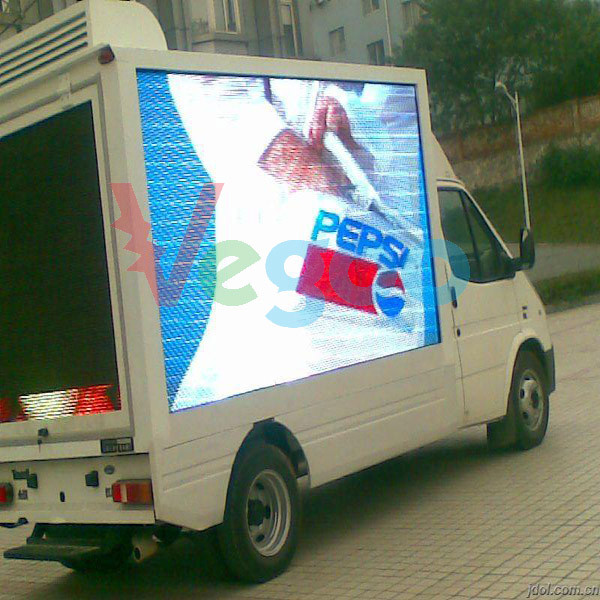

    Truck Mounted advertising P8 Outdoor Full color LED Display


    Description:


    1. Pixel Configuration: 1R1G1B/SMD3535

    2. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.

    3. Neat and Hidden Wiring allow the display more tidy and beautiful.

    4. Leds separate from driver design: Low heat emission and easy maintenance.
    5. 4 Protective measures: Dust-proof, Water-proof, UV-proof and Shock-proof.
    6. High brightness 6500nits and Manually adjust brightness(Automatic for option).


    P8 Outdoor Full color LED Display Specification


    NO:Product NameSpecification
    1Pixel Pitch8mm
    2Pixel Configuration1R1G1B/SMD3535
    3Density15,625 pixel/m2
    4Moduel Size(L×W)mm256mm×128mm
    5Cabinet Size(L×W×H)mm768mm×768mm×130mm
    6Module Resolution32×16
    7Cabinet Resolution96×96
    8Driving Method1/ 4 Scan
    9Driving ICMBI5124 or ICN 2038S
    10Brightness5000cd/㎡
    11Contrast1000:1
    12Brightness AdjustmentAuto and Manual
    13Power ConsumptionMax Power:450W
    14Average power: <200W
    15Module Weight0.35kg
    16Color Temperature9500K—11500K
    17Horizontal Viewing Angle140º
    18Vertical Viewing Angle140º
    19Signal Processing10 or 14bit
    20Grey Processing1024×1024×1024
    16834×16834×16834
    21Control Distancecable100m,Multimode500m,Single mode 2km
    22Frame Frequency65 Hz
    23Refresh Rate>1920Hz
    24Control ModeSynchronous/Asynchronous
    25The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    26Users can choose the recommended curve or adjust it based on actual situation
    27MTBF>50000 hours
    28Life Span100,000 Hours
    29Operating TemperatureWorking : -20 - 65 ℃
    30Storage : -40 - 85 ℃
    31Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    32Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    33Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    34Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    35Power SupplyAC 110-220V
    36Protectionwaterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)


    Customer Service


    1) Guarantee Time: Within one year after delivery form factory
    2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
    3) Maintenance Mode :
    By returned maintenance , through express or by other way
    4) Response time for maintenance :Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
