Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-RD 4.81 |
| Certification : | CE/ROHS/FCC |
| Supply Ability : | 3000sq.m/month |
| Delivery Time : | 10-15 days |
OUTDOOR FULL COLOR LED DISPLAY

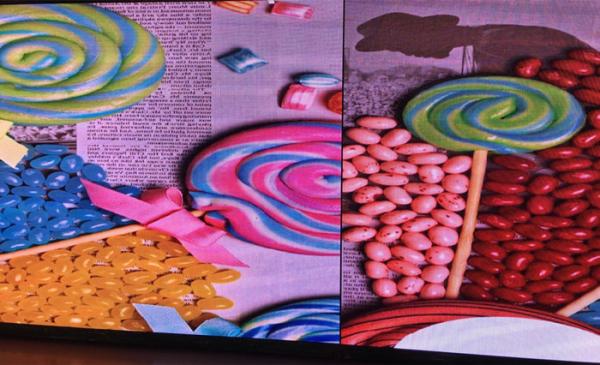

Advertising outdoor video wall panels P4.81 LED Screen board 1100cd/㎡
APPLICATION
RENTAL DISPLAY
INDOOR DISPLAY
OUTDOOR DISPLAY
TRANSPARENT DISPLAY
ACCESSORIES
MARKET
DIGITAL BILLBOARD
BOARDS/MEETING ROOM
MEDIA FACADE
SPORT STADIUM ARENA
TV STUDIO/BROADCAST
EDUCATION TRAINING
AIRPORTS
LIVE SHOW AND STAGE
Retails-Fix-Rental-Led-Display
P4.81 outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4.81mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 43,243 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
| Module Resolution | 52×52 | ||||||||||
| Cabinet Resolution | 104×208 | ||||||||||
| Driving Method | 1/13 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 1100cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜420W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 052kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
