Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-P3-160w/h-out1 |
| Certification : | CE/ROHS/FCC |
| Price : | negotiation |
| Supply Ability : | 5000sq.m/month |
| Delivery Time : | 10-25 days |
| Payment Terms : | L/C, T/T |

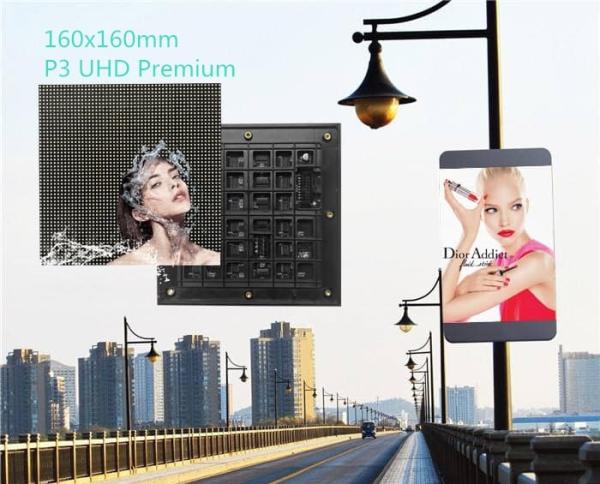

RGB Large Outdoor LED Display Screens / Electric Outdoor Digital Display Board
Outdoor LED Display Screens Application
Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
Outdoor LED Display Screens Specifications sheet
| Type | G series G3 | LED type | SMD1921 | |||
| NO. | Color | Iv(mcd) | Rd(nm) | |||
| 1 | R(test condition:15mA,2.0V) | 350mcd | 622nm | |||
| 2 | G(test condition:8mA,3.0V) | 620mcd | 530nm | |||
| 3 | B(test condition:5mA,3.0V) | 95mcd | 472nm | |||
| 1 | LED type | FM-B1921RGBA-HG | |
| 2 | Pixel pitch | 3mm | |
| 3 | Pixel configuration | 1R1G1B | |
(2)module | |||
| 1 | module resolution(W×H) | 53dots×53dots | |
| 2 | module dimension(W×H×D) | 160mm×160mm×28mm | |
| 3 | mask | Flame retardant PVC | |
(3)control system | ||
| 1 | the processing color depth | R,G,B≥16bit |
| 2 | driving method | constant current driving 1/13 scan |
| 3 | frame rate | 60Hz (3D high refresh rate :120Hz) |
| 4 | refresh rate | Regular refresh rate:≤900Hz high refresh rate:≤1920Hz |
| 5 | panel color Temp | 2000K～9500K(adjustable) |
| 6 | brightness adjustment | manually/Auto/programme control |
| 7 | pixel correction | point by point correction |
| 8 | control method | synchronism |
| 9 | software interface | Windows XP /7/8/10 |
| 10 | input signal | HDMI,DVI |
Protection degree
Front IP65,RearIP54
about us
Audio visual manufacturer, WeiGu LED displays in the rapidly
expanding Chinese market at the same time, has towards the
international market, and the share of export gradually increasing.
The LED application product variety is complete which researched
and manufactured by our company, the product structure
diversifying. Including: Cover the indoor and outdoor series.
Certificates
RoHS/CCC/CE/EMC/ISO /FCC certifications.
|
|
