Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-HD 1.667 |
| Certification : | CE/ROHS/FCC/ |
| Price : | Negotiable |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 1500Sqm/months |
| Delivery Time : | 15 working days |

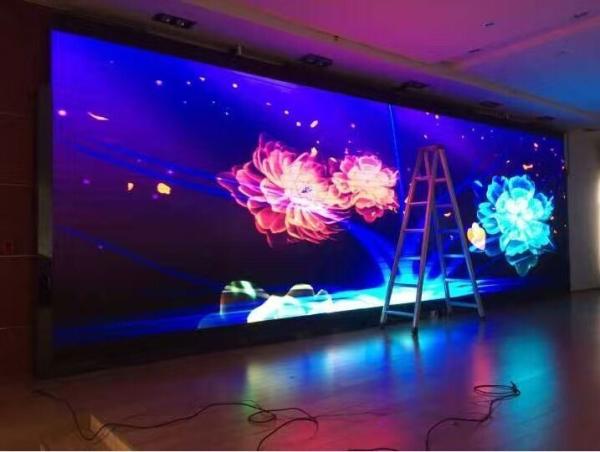

Flexible LED Video Wall Rental / Waterproof LED Wall Display Screen
LED Video Wall Rental Feature
HD
Ultra thin and ultra light
Low attenuation,high gray level,good stability,anti-static
Entire die casting aluminum
LED Video Wall Rental Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 1.667mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1010 Black lamp | ||||||||||
| Density | 360,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 200mm×150mm×8mm | ||||||||||
| Cabinet Size(L×W×H)mm | 400mm×300mm×65mm | ||||||||||
| Module Resolution | 120×90 | ||||||||||
| Cabinet Resolution | 240×180 | ||||||||||
| Driving Method | 1/30 Scan | ||||||||||
| Driving IC | MBI5153 | ||||||||||
| Brightness | 600cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜950W | ||||||||||
| Average power: ＜350W | |||||||||||
| Module Weight | 0.45kg | ||||||||||
| Color Temperature | 2000K—12000K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >3840Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
| Protection Level | IP41 | ||||||||||
About US
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
|
|
