    High Brightness Indoor Full Color LED Display For Office Building 1000cd/㎡

    Ask Lasest Price
    Brand Name : Vegoo
    Model Number : VG-FD 3
    Certification : CE/ROHS/FCC/
    Supply Ability : 3000 Sq.m / month
    Delivery Time : 15 working days
    Price : negotiation
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    High Brightness Indoor Full Color LED Display For Office Building 1000cd/㎡

    High Brightness Indoor Full Color LED Display For Office Building 1000cd/㎡


    Indoor Full Color LED Display Description:


    a. Display video, vivid and no flashing, to achieve live broadcast.
    b. Display VCD, DVD and LD, etc, to satisfy the basic demand of recreational activities.
    c. Multi-format documents are available, such as AVI, MOV, MPG, DAT & VOB
    d. Brightness, contrast and saturation level is adjusted by software in the range of 256 levels.
    e. Three kinds of display modes are provided: VGA+VIDE, Video, and VGA.
    f.It supplies Video compression control function.
    g. LED Display displays synchronously.


    The strongest: anti-striking, broken-resistant, and safe with special materials of macromolecule.


    Wireless:displaying, driving and receiving are integrated to simplify the complex inner structure, improving

    its safety and stability.


    Wide view angle: the perfect image can be enjoyed from any direction within the range of 140º


    Fastly heat dissipation: adopt the most advanced heat conducting technology, realizing the design of fan

    free, totally mute voice, high efficiency in heat dissipation.


    Indoor Full Color LED DisplaySpecification:


    Product NameHigh Brightness Indoor Full Color LED Display For Office Building 1000cd/㎡
    Pixel Pitch4mm
    Pixel Configuration1R1G1B/SMD2121 Black lamp
    Density62,500 pixel/m2
    Moduel Size(L×W)mm256mm×128mm
    Cabinet Size(L×W×H)mm512mm×512mm×90mm
    Module Resolution64×32
    Cabinet Resolution128×128
    Driving Method1/16 Scan
    Driving ICMBI5124 or ICN 2038S
    Brightness1000cd/㎡
    Contrast1000:1
    Brightness AdjustmentAuto and Manual
    Power ConsumptionMax Power:<610W
    Average power: <240W
    Module Weight0.2kg
    Color Temperature9500K—11500K
    Horizontal Viewing Angle140º
    Vertical Viewing Angle140º
    Signal Processing10 or 14bit
    Grey Processing1024×1024×1024
    16834×16834×16834
    Control Distancecable100m,Multimode500m,Single mode 2km
    Frame Frequency65 Hz
    Refresh Rate>1920Hz
    Control ModeSynchronous/Asynchronous
    The Opposite Calibration CurveWith Eight Optional Gamma Calibration Curve
    Users can choose the recommended curve or adjust it based on actual situation
    MTBF>50000 hours
    Life Span100,000 Hours
    Operating TemperatureWorking : -20 - 65 ℃
    Storage : -40 - 85 ℃
    Environment Temperature-30℃ to 60℃; humidity Rh10% to 95%
    Remote ControlCan realize remote control and send alarm signal to operators in case of logging failure (Be customized)
    Self-checking TechniqueSelf-inspection, communication test, power test, temperature monitoring (Be customized)
    Operating System PlatformWindowsNT,Windows2000,WindowsXP,Windows7
    Power SupplyAC 110–220V


    Protection


    dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)


    The Selection of led


    Red,Green and Blue light emitting diode (LED) lamps should be the same grade, height and wavelength on the same displayThe height or Red ,Green and Blue light from light emitting diode(LED ) lamps at the proportion of R:G:B=3:6:1The chips were imported from Optotech Cree/ Nichia are adopted;Adopted automation solid crystal,light split,bonding wire,bagging;


    Reliability Test


    In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc. The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package itThe reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects

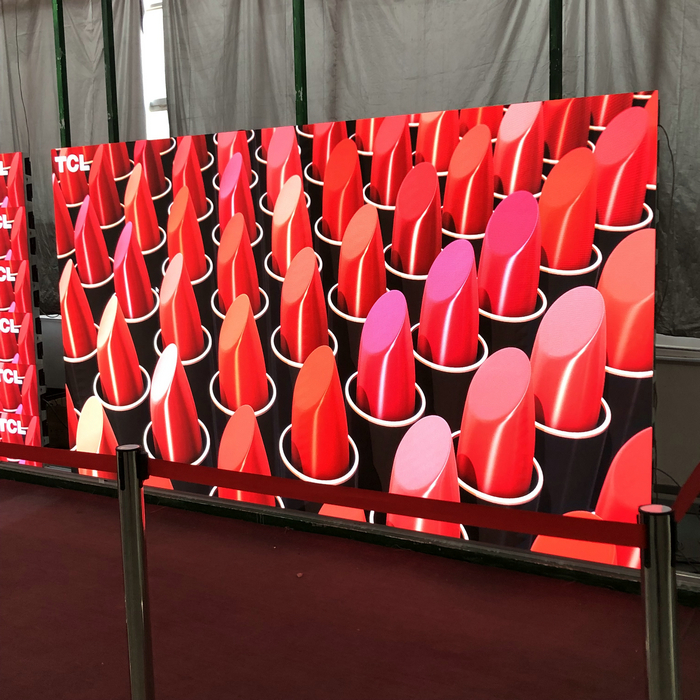

    Indoor Full Color LED Display Details
