Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | P1.25-DH-2 |
| Certification : | CE |
| Payment Terms : | T/T |
| Supply Ability : | 5000 Sqm/month |
| Delivery Time : | 10-20 days |
| Price : | Negotiable |
| P1.25 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 1.25 mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1010 Black lamp | ||||||||||
| 3 | Density | 640,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 200mm×150mm×8mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 400mm×300mm×60mm | ||||||||||
| 6 | Module Resolution | 160×120 | ||||||||||
| 7 | Cabinet Resolution | 320×240 | ||||||||||
| 8 | Driving Method | 1/30 Scan | ||||||||||
| 9 | Driving IC | MBI5153/ICN 2153/FM6353 | ||||||||||
| 10 | Brightness | 600-800CD/㎡ | ||||||||||
| 11 | Contrast | 4000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜900W | ||||||||||
| 14 | Average power: ＜100-300W | |||||||||||
| 15 | Cabinet Weight | 4.2kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -10 - 60 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -10℃ to 60℃; humidity Rh10% to 90% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsXP/7/8/10 | ||||||||||
| 35 | Power Supply | AC110-240V / 5V60Hz | ||||||||||
| 36 | Protection Level | IP 45 | ||||||||||

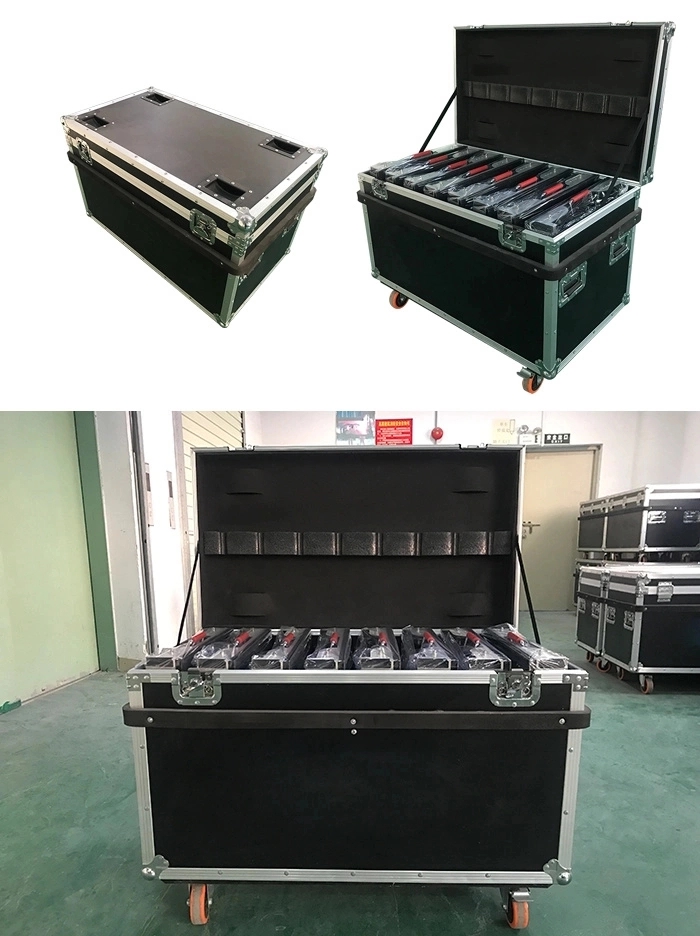

Packaging & Shipping
1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.
2. How long do you provide warranty time?
A: Different product offer different time frame warranty, but all
product here we offer 2 years at least warranty
3. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The
package will be shipped out in 1-2 working days after we get your
payment.
4. What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 12
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with
spare parts.
Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time!
5. How can you ensure the led display product quality?
A: Our led display screen quality is our core competence, for 7
years, what we rely on. We have each standard process to make
quality products.
If any quality failures within warranty time, we will refund you
|
|
