| Brand Name : | Vegoo |
| Model Number : | P1.25-DH-2 |
| Certification : | CE |
| Price : | $600 |
| Payment Terms : | T/T |
| Supply Ability : | 5000 Sqm/month |
| Delivery Time : | 10-20 days |

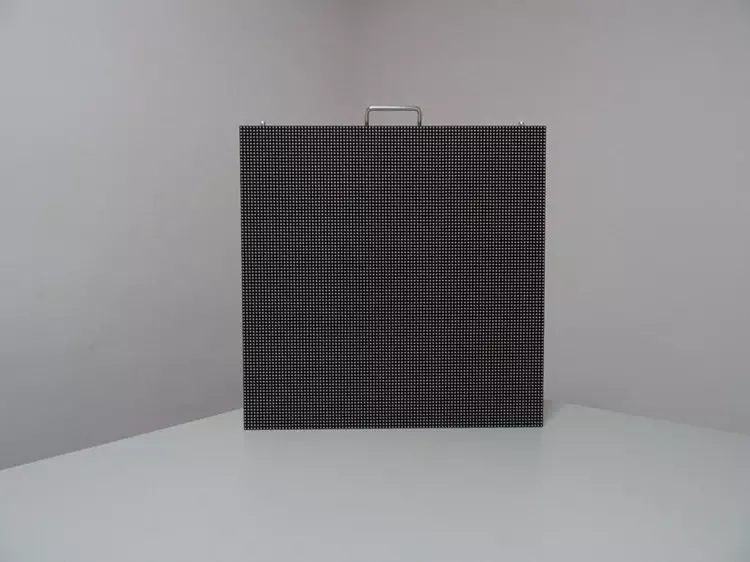

| P4 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 4mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 62,500 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| 6 | Module Resolution | 64×32 | ||||||||||
| 7 | Cabinet Resolution | 128×128 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or FM6124 | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜410W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Cabinet Weight | 6.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110–220V/5V60Hz | ||||||||||
| 36 | Protection Level | IP 45 | ||||||||||

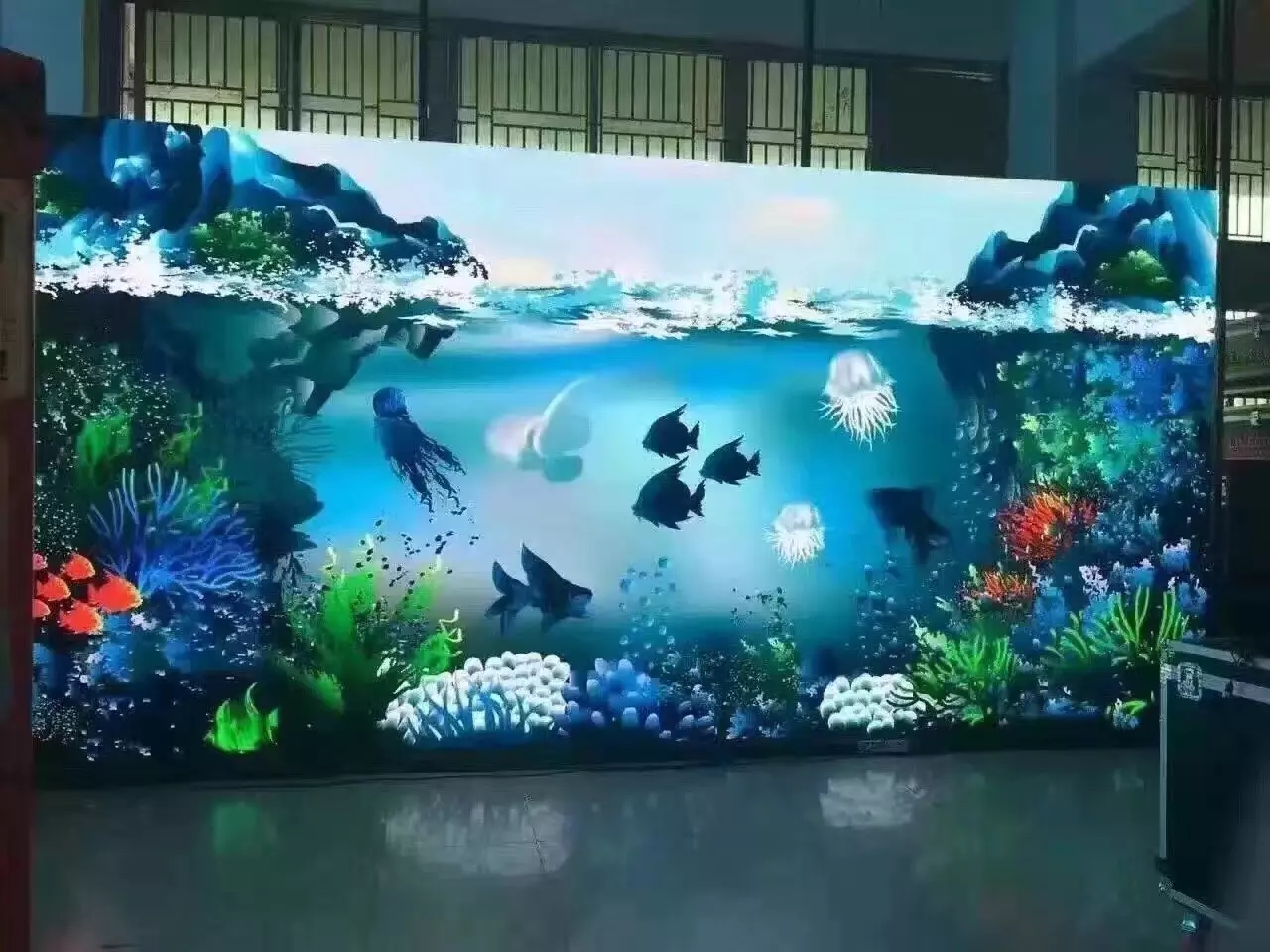

Application:
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commerical
adversting.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific
lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center
screen, and screens in swimming stadium, Athletics stadium.
3.Transportation LED display screen
Widely use in the busy streets of city or on the highway.
Screens display weather, traffic regulations, to remind drivers to
drive safely.
4. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other
entertainment event as background.
LED control system
Packing&Shipping
Our Services
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical
support. at present, our product has covered more than 100 countries and regions.
|
|
