Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-P6.67-DH |
| Certification : | CE |
| Price : | $580 |
| Payment Terms : | T/T |
| Supply Ability : | 5000sqm/month |
| Delivery Time : | 10-20 days |

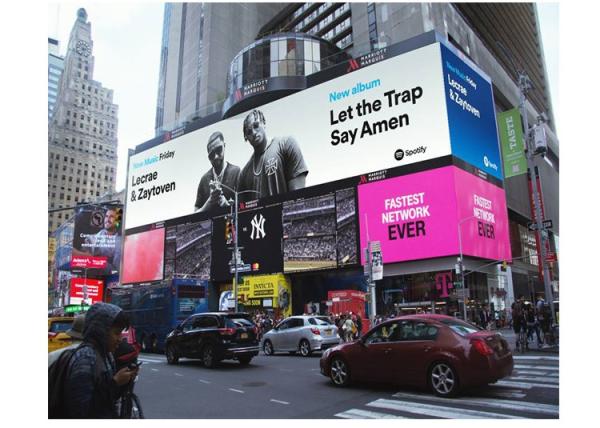

Excellent Quality Waterproof Outdoor LED P6.67mm Digital LED Display Video Screen/Panel For Tourist Spot Advertising
Product advantages:
1.RGB deep gray processing to show any color.
2.Support point correction function, ensure the consistency of the color and the brightness in the process of use.
3.Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 2 years.
4.With the protection rating of IP65, face any bad weather.
5.With the professional aviation plug as the connectors ensure the qualit and safety.
6.With the high quality raw material, mature process and scale production, the quality is ensured.
| P6.67 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6.67mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 22,545 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 640mm×640mm×90mm | ||||||||||
| 6 | Module Resolution | 48×24 | ||||||||||
| 7 | Cabinet Resolution | 96×96 | ||||||||||
| 8 | Driving Method | 1/6 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 5500cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜650W | ||||||||||
| 14 | Average power: ＜325W | |||||||||||
| 15 | Cabinet Weight | 10.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
1: What is the positioning of your company?
We are a 12-year-old manufacturer focusing on LED displays (regular and creative).
2: What kind of service do you have?
A. Pre-sale service
1. Reply enquiries in 12 hours.
2. Provide professional solutions based on customer's requirement, can do project design for you.
3. Offer sample and all document as customers required.
4. Other services, such as factory visiting and so on.
B. In-sale service
1. Production progress report.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
C. After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 12 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
3: What does the number mean behind P2, P3.91 etc?
It means each two neighboring pixel distance is 2mm, 3.91mm. The number also means the best viewing distance, P3.91 means the best viewing distance is 3.91m. Besides, In a certain area, if the pixel pitch is smaller, it means the leds/pixels are much more, which can create a higher resolution.
4: How should I choose the suitable screen/dance floor/lighting for my project?
You just need to think of 3 simple questions when you choose a led
screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another
place very often) or for fixed installation(to be installed in one
place forever)?
3.what is the appoximate size of the led screen you would like to
purchase?
5: How long is it for my order production?
It depends, but normally 15-20 days.
6: How about the warranty time?
Our products warranty is 2 full year but lifelong maintenance service. For details, our sales consultants will advise you
|
|
