Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | VEGOO |
| Model Number : | VG-SUN88842 |
| Certification : | CE ROHS FCC CCC |
| Price : | negotiate |
| Payment Terms : | T/T |
| Supply Ability : | 3000 sqm per month |
| Delivery Time : | 15-30 working days |

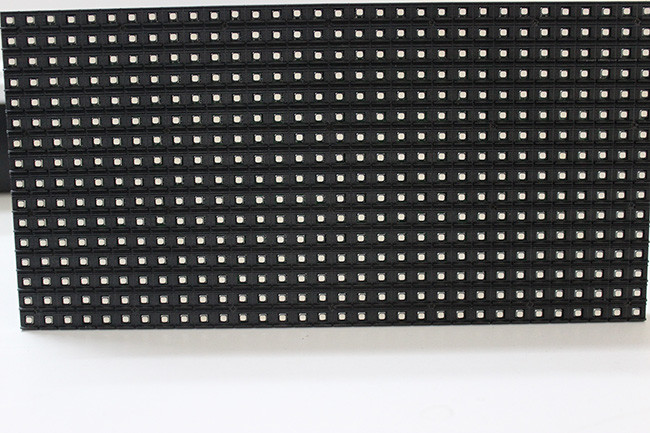

IP65 Outdoor Full Color LED Display P6.67 video wall advertising screen
Our advantage:
1.Quickly installation and easy to maintain
2.Aluminum is more portable and radiates heat well
3.Hd resolution
4.High precision cabinet,seamless splicing
5.High quality module splicing
P6.67 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 6.67mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| Density | 22,545 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 640mm×640mm×90mm | ||||||||||
| Module Resolution | 48×24 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/6 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 5500cd/㎡ | ||||||||||
| Contrast | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜650W | ||||||||||
| Average power: ＜325W | |||||||||||
| Cabinet Weight | 10.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
FAQ
Q1. What's fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.
Q2. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door.
Q3. The display will come to me in parts?and I have to install each part together?
Yes, but it's very easy. We will send you the instruction manual and also we can remote control to help you to adjust the software, everything.
Q4. How can I install the led display?
There are two way for you, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided if need.
|
|
