Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | VEGOO |
| Model Number : | VG-SUN88841 |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Payment Terms : | T/T |
| Supply Ability : | 3000SQM/MONTH |
| Delivery Time : | 15-30 working days |

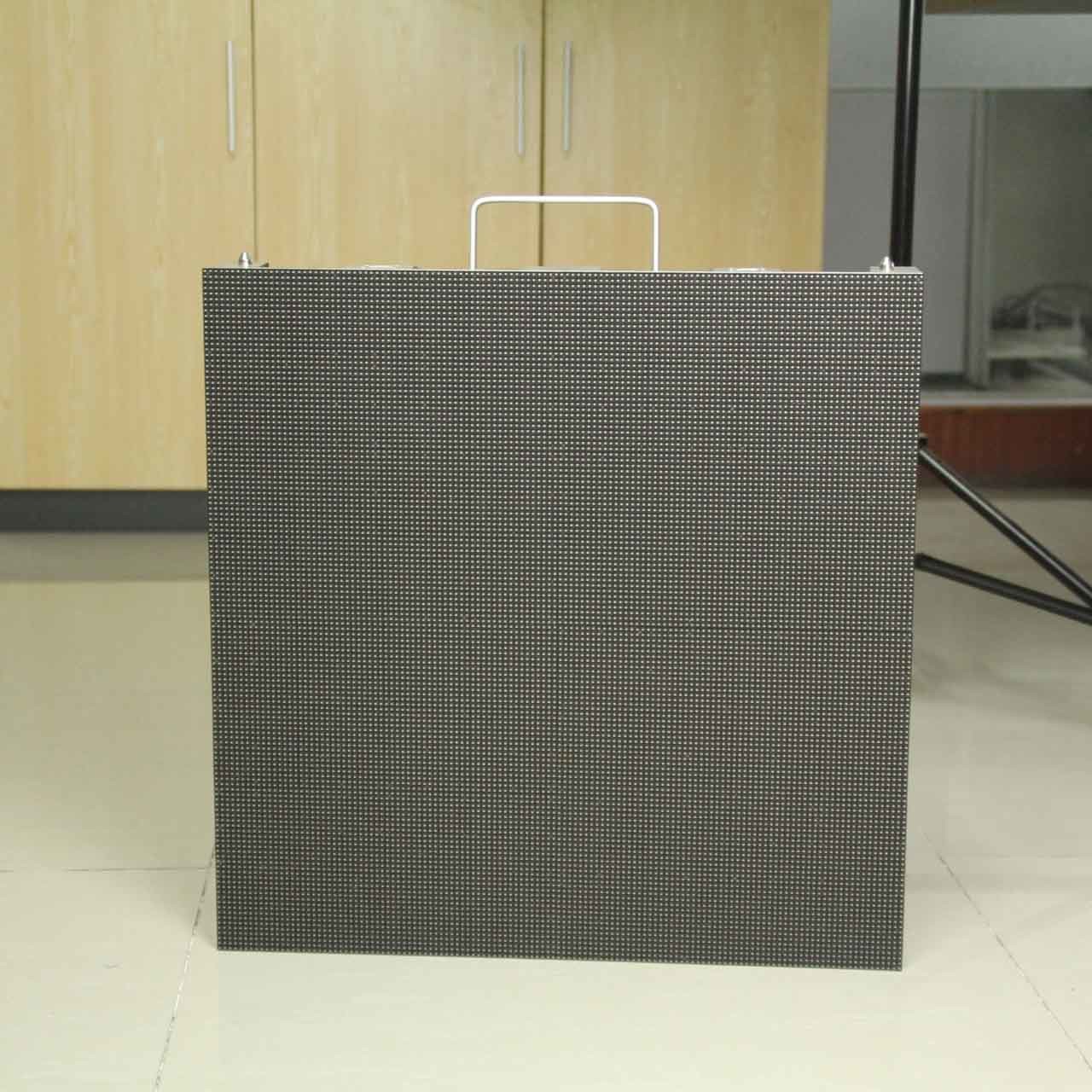

Good quality factory directly P6 Outdoor led advertise video screen waterproof
1,high gray,large angle,ensure quality and delicate,high refresh rate to ensure video and photos without a moire phenomenon.
2,special structure and material design.
3,low consumption,long use life
P6 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 6mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| Density | 27,777 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 32×32 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | FM6124 | ||||||||||
| Brightness | 6500cd/㎡ | ||||||||||
| Contrast | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜810W | ||||||||||
| Average power: ＜405W | |||||||||||
| Cabinet Weight | 8.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
FAQ
Q1: What's the control system do you use?
A: Our control system is Novastar normally. Also support other controlling system.
Q2: Do you have any certification for LED display?
A: Yes, we have CE,ROHS,CCC certification.
Q3: How about the guarantee of led display?
A: We guarantee all our displays, modules, spare parts for three years.
During this time, we will replace it for free if there is something wrong with them.
|
|
