Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-SUN88840 |
| Certification : | CE/ROHS/FCC/CCC |
| Price : | negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 2800Sq.m |
| Delivery Time : | 7-25 days |

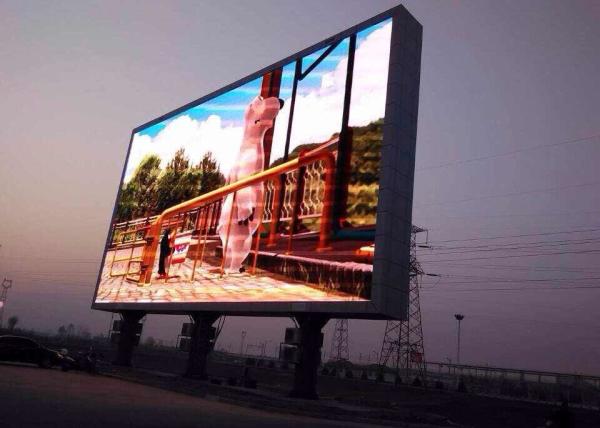

P5.95 wholesale price Outdoor advertising video screen led display
Our core advantage:
1,waterproof,IP65
2,high brightness,fulfill your outdoor strong light resistance.
3,good quality and best after-sale service
P5.95 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5.95mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 28,235 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| Module Resolution | 42×42 | ||||||||||
| Cabinet Resolution | 84×84 | ||||||||||
| Driving Method | 1/7 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜640W | ||||||||||
| Average power: ＜320W | |||||||||||
| Cabinet Weight | 11.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Customer Service:
1) Warrenty: three year
2) Maintenance : LED modules,Power supply ,Control system and other accessories
3) Maintenance way :It depends on the actual situation to decide to return to our factory or go to your country
4) Response time:within 24hours
|
|
