Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-P1.9-balll |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 5000 Sqm/month |
| Delivery Time : | 10-20 days |
| Model Type: | P2.5 | P3.33 | ||
| Pixel Pitch | 2.5 mm | 3.33mm | ||
| LED Type | SMD 1921 | SMD1921 | ||
| Pixel Density | 160,000 dot/ m2 | 91,818 dots | ||
| Module Size | 480*320mm | 480*320mm | ||
| Frame Size | 1100mm( L) x 330mm(H) X W:90mm(bottom)/ 38mm (top) | 1100mm( L) x 330mm(H) X W:90mm(bottom)/ 38mm (top) | ||
| Frame Materials | Aluminum | Aluminum | ||
| Screen Size | 960mm*320mm | 960mm*320mm | ||
| Screen Resolution | 384*128 dot | 288*96 dots | ||
| Brightness | >=5000 nit | >=5000 nit | ||
| Contrast | >8000:1 | >8000:1 | ||
| View Angle | 150°(H)/150°(V) | 150°(H)/150°(V) | ||
| Scan Mode | 1/22 scan | 1/12 scan | ||
| Power Supply Input | DC10.5~40V | DC10.5~40V | ||
| Max Consumption | 250w | 250w | ||
| Average Consumption | 150w | 150w | ||
| Optimal Viewing Distance | 1-20M | 3--20M | ||
| MTBF | 10,000 Hours | 10,000 Hours | ||
| Fresh Frequency | >3840HZ | >2800HZ | ||
| Control Method | Asynchronous | Asynchronous | ||
| Control Mode | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB | ||
| Temperature Operating | -40°~+70° | -40°~+75° | ||
| Working Humidity | 10%-90%RH | |||
| Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew | |||
| Power Protection | over-temperature/over-current/ over-voltage protection | |||
| Package | Honeybox | |||
| Package Dimension | 1100mm(L) X 500mm(H) X 200mm(W) | |||
| Screen Weight: | 12 kg | 12kg | ||
| Gross Weight: | 18 kg | 18Kg | ||

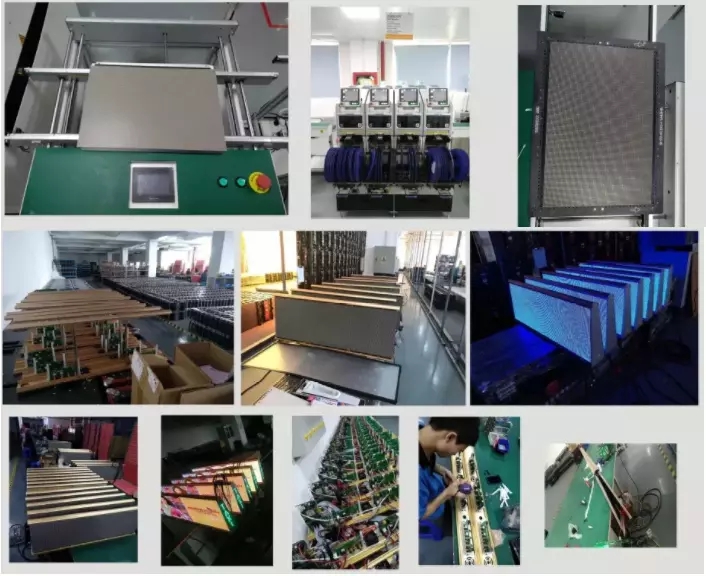

workshop:
|
|
