Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-P5-DH2 |
| Certification : | CE |
| Payment Terms : | T/T |
| Supply Ability : | 5000 Sqm/month |
| Delivery Time : | 10-20 days |
Good Quality Full Color Hd Indoor Flexible P2 P2.5 P3 P4 P5 Led Display Video Curtain Screen
Fearture:
1. High brightness, the video is still clearly visible even when
the sun shines directly on the screen surface within the visible
distance;
2. Customized display effect and resolution design;
3. Mapping point-to-point control of playback system and display surface;
4. RGB basic colors have 16-bit color changing ability, can combine 281 trillion colors;
5. DVI interface supports digital information input, Scalable to multi-function video interface display system: CV, YPbPr, HD-SDI, HDMI, VGA, S-terminal, etc.;
6. full-path Gigabit fiber/network transmission and 128-bit signal processing system;
7. low gray level and high performance capability Rich program level, synchronous display with computer;
8. immediately playing content for instant editing and instant display;
9. Software and hardware system supports playback layout adjustment, play schedule arrangement, play record statistics, etc.
| Technical parameters | Parameters values |
| Pixel pitch | 5mm |
| Module size | L320*H160*T13mm |
| Physical density | 40000dots/sq.m |
| LED Encapsulation | SMD2121 |
| Module weight | 0.25kg |
| Port type | HUB75-B |
| Cabinet | 640*640mm |
| Viewing angle | 140° |
| Viewing distance | Max-50m |
| Maximum power | 600W |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥1920Hz |
| Equilibrium brightness | ≥2000cd |
| Working temperature | -25~50℃ |
| Working humidity | 10%~90% |
| Working voltage | 220V±15%/110V±15% |
| Control system | Nova Star or LINSN control system |
| Life | 100000Hours |
| IP rating | IP54 |
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Indoor LED Display Screen?
A3: Indoor (P2.5mm/P2.9mm/P3mm/P3.91mm/P4mm/P5mm/P6mm/P10mm)
Q4: Where is it used for?

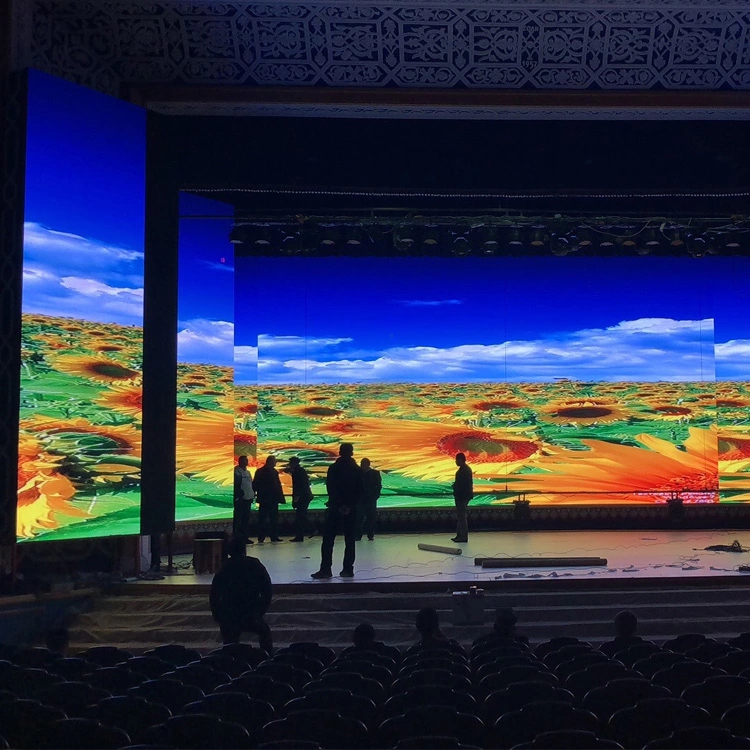

A4:Indoor & Fixed use. Widely used for indoor rental led display music live show video wall, rental led display wedding backdrop, rental led display car exhibition usage ect.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system,
|
|
