| Brand Name : | VEGOO |
| Model Number : | VG-SUN88861 |
| Certification : | CE ROHS FCC CCC |
| Price : | negotiate |
| Payment Terms : | T/T |
| Supply Ability : | 3000 sqm per month |
| Delivery Time : | 15-30 working days |

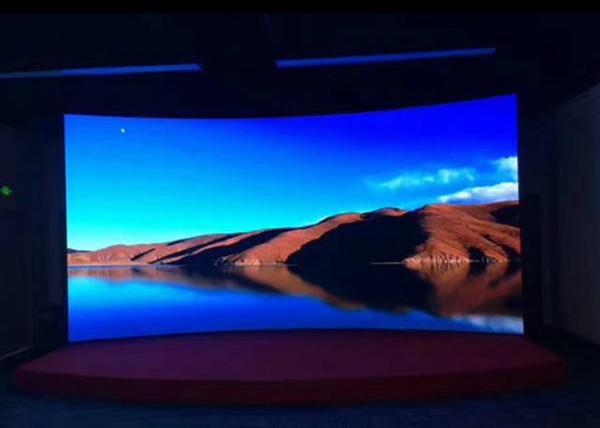

Manufacturer supplier Indoor full color P3.84 led screen stage for video
product description
1.A data connection using horn,connections are tight,to prevent looseing,horn special structure and material design.
2.High gray design,even in low light loss is not gray,large viewing angle,good color uniformity,ensure quality and delicate,high refresh rate to ensure and photos without a more phenomenon.
3.Adjustable brightness according to indoor environment,low attenuation,muti-layer circuit board design.VH4 power supply,the current distribution.
P3.84 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 3.84mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 67,500pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 50×50 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/25 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜550W | ||||||||||
| Average power: ＜275W | |||||||||||
| Cabinet Weight | 9.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
our service
1. We have a professional engineers team
All of them have experienced more than 5 years in the LED display industry. They are specialists, try their best to make your dream come true.
2. Anything could be customized
Most of our customers are always asking if they could add something from them, or just add their logo on somewhere, our responses are always yes. We could create the screen shape for you, some logo on your product, even could fit your products in it. How amazing that is!
3. Intimate services
Our sales will reply to every question every day, 7-24, even if you couldn't speak English so well, we also have other language support.
|
|
