Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-OUT-P5.2 |
| Certification : | CE/ROHS/FCC/CCC |
| Price : | $1590-$1620 |
| Payment Terms : | T/T in advance |
| Supply Ability : | negotiation |
| Delivery Time : | 7-25 days |
Outdoor transparent led display panels P5.2 for exhibition hall and trade show is a high-quality product designed to meet the needs of clients.
Features:
Transmittance of the screen can ahieve more than 65 %.
It's no splicing structure, transparent display accounted for more than 95% of the full screen.
Slight: Weight of stand mounted advertising machine only 30kg.
Benefits:
We believe that outdoor transparent led display panels P5.2 for exhibition hall and trade show offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering outdoor transparent led display panels P5.2 for exhibition hall and trade show. We look forward to the opportunity to work with you and help you achieve success.
| LED Modules | 1 | Module size | Length 500 Width 125 Thickness 10mm |
| 2 | Resolution | 96X12=1152 | |
| 3 | Pixel pitch | 5.2mm ×10.4mm | |
| 4 | Physical density | 18432 points/ m² | |
| 5 | Module current | 7A ±0.1A | |
| 6 | Input voltage | 4.8V-5.2V | |
| 7 | Module power consumption | 35 W | |
| 8 | Module weight | 310g |
| Cabinet parameters | 1 | Cabinet resolution (width x height) | 192 pixels × 48 pixels |
| 2 | Module distribution (width x height) | 2×4 | |
| 3 | cabinet size (width x height x thickness) | 1000mmX500mm× 94mm | |
| 4 | Cabinet weight | 7.5Kg/cabinet; 15 Kg/m² | |
| 5 | Installation | Back frame installation/hoisting/inner arc installation | |
| Screen technical parameters | 1 | Point Density | 18432 points/m² |
| 2 | brightness | 800-5,500 nits | |
| 3 | Horizontal viewing angle / vertical viewing angle | 160 °/160 ° | |
| 4 | Transmittance | ≥35% | |
| 5 | Chromaticity uniformity | Within ±0.003 Cx, Cy | |
| 6 | Highest contrast | 2000:1 | |
| 7 | Protection level | ≥IP65 | |
| 8 | Maintenance method | Routine maintenance/post-maintenance | |
| System control parameters | 1 | Signal color processing bits | Red, green, blue ≥ 16 bits each |
| 2 | Drive mode | Constant current drive | |
| 3 | Frame rate | 60fps high refresh rate, 3D support: 120fps | |
| 4 | Refresh rate | Normal refresh rate ≤1920HZ High refresh rate ≤3840Hz | |
| 5 | Screen color temperature | 3200K～9500K adjustable | |
| 6 | Dimming | Manual/Automatic/Programmable | |
| 7 | Pixel Correction | Equipped with brightness and color point by point correction | |
| 8 | control method | Synchronous control | |
| 9 | Control distance | Category 5e twisted pair network cable, optical fiber transmission over 100 meters | |
| 10 | Software Interface | Windows XP /7/8/10 | |
| 11 | signal input | HDMI, DVI | |
| Screen operating parameters | 1 | Operating Voltage | AC: 240V, 50~60Hz |
| 2 | Peak power consumption | 800 W/ m² | |
| 3 | Average power consumption | 200 W/ m²4 00 W/ m² | |
| 4 | Continuous working time | ≥7×24hrs, support continuous and uninterrupted display | |
| 5 | Mean time between failures | ≥10000 hours | |
| 6 | LED lamp management theory life | 100,000 hours | |
| 7 | Discrete out-of-control points | ≤0.0001, factory default is 0 | |
| 8 | Continuous out-of-control points | 0 | |
| 9 | Blind spot rate | ≤0.0001, factory default is 0 | |
| 10 | Operating temperature | -40℃～45℃ | |
| 11 | Operating environment humidity | 10%～90%RH, no condensation |
Product pictures

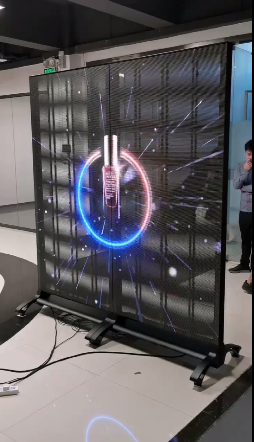

double sides transparent screen
--------------------------------------------------------------------------------------------------------------------------------------------
Front oblique view of the cabinet
-------------------------------------------------------------------------------------------------------------------------------------------------
cabinet appearance back view
--------------------------------------------------------------------------------------------------------------------------------------------------
cabinet back oblique view
|
|
