| Brand Name : | VEGOO |
| Model Number : | VG-P3.91-8scan |
| Certification : | CE ROHC FCC |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 8000sqm per month |
| Delivery Time : | 15-25days |
Features
With high transparency rate of 65%-80%. ensure the lighting requirements and angle between floors, glass windows, facade lighting structure
The power line inside the cabinets, the screen thickness is only 50mm, and the appearance is simple and elegant.Structure is only 10kg/m, cabinet is only 13kg/m

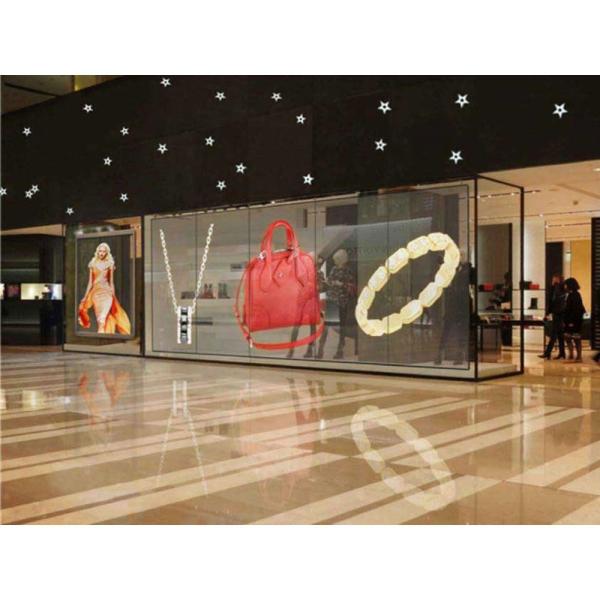

As long as there is a glass curtain wall, this product can be applied. Such as banks, shopping malls, theaters, commercial streets, chain stores, hotels, municipal public buildings, landmarks, etc.
According to the site environment to do any shape, plane and arc, regular and irregular shape can be produced, can meet the personalized needs of different places
No need traditional air conditioning cooling system, saving more than 35% energy than ordinary LED display.
Main Specifications
| NO. | Parameter | Ph3.9-Normal brightness | Ph3.9-Normal brightness | Ph3.9-Hight brightness | Ph3.9-Hight brightness |
|---|---|---|---|---|---|
| 1 | Pixel pitch(mm) | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm |
| 2 | Cabinet size (mm*mm) | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 |
| 3 | Density(dots/m) | 32768 | 32768 | 32768 | 32768 |
| 4 | Packaging style | 1r1g1b SMD direct-lit nationstar lamp2020 | 1r1g1b SMD direct-lit nationstar lamp1921 | 1r1g1b SMD direct-lit nationstar lamp1921 | 1r1g1b SMD direct-lit nationstar lamp1921 |
| 5 | Best view distance(m) | 5~100m | 5~100m | 5~100m | 5~100m |
| 6 | Transparent rate(%) | 65% | 65% | 65% | 65% |
| 7 | View ankle(°) | Horizontal 120° Vertical 120° | Horizontal 120° Vertical 120° | Horizontal 120° Vertical 120° | Horizontal 120° Vertical 120° |
| 8 | Environment temperature(℃) | Storage -40℃~+80℃ Working -20℃~+50℃ | Storage -40℃~+80℃ Working -20℃~+50℃ | Storage -40℃~+80℃ Working -20℃~+50℃ | Storage -40℃~+80℃ Working -20℃~+50℃ |
| 9 | Thickness(mm) | 80 | 80 | 80 | 80 |
| 10 | Avg.power consumption(W/m) | 100~150 | 150~200 | 100~150 | 150~200 |
| 11 | Max.power consumption(W/m) | ≤400 | ≤600 | ≤800 | ≤800 |
| 12 | Driving method(scan) | 1/16 | 1/16 | 1/8 | 1/8 |
| 13 | Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| 14 | Brightness(cd/m) | ≥800 | ≥1500 | ≥4000 | ≥5000 |
| 15 | Installation | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount |
