Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | Vegoo |
| Model Number : | VG-RENTAL-P2.604 |
| Certification : | CE/ROHS/FCC/CCC |
| Price : | Negotiation |
| Payment Terms : | T/T in advance(50% deposit) |
| Supply Ability : | negotiation |
| Delivery Time : | 7-15 days |

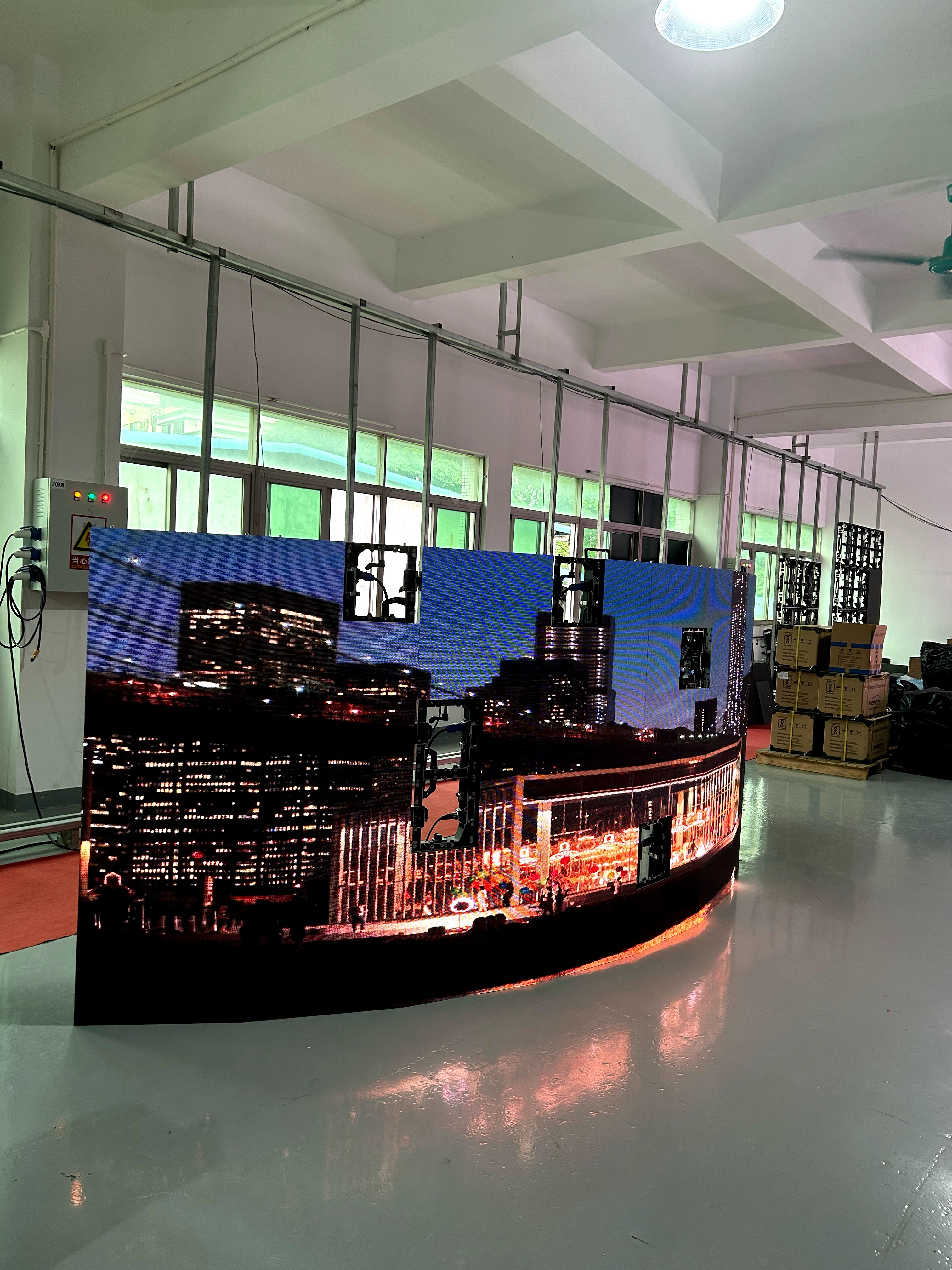

Curved rental P3.91 indoor exhibition art show product can widely use in many fields, which can attract visitors' or clients' attention.
Feathers
Product Parameters
| CABINET SOLUTION | |||||||||||||
| Demension | Width | 500mm | Height | 500mm | |||||||||
| Resolution | 128 | pixel | 128 | pixel | 16,437 | dots | |||||||
| Thickness | 65mm | ||||||||||||
| Weight | 6.5kg | ||||||||||||
| Material | Aluminum Die-casting | ||||||||||||
| SCREEN | |||||||||||||
| Item | Description | ||||||||||||
| Model | P3.91 | ||||||||||||
| Screen | Cabinet Compostion | 26 | pcs | (W) | X | 10 | pcs | (H)= | 260 | pcs | |||
| display size | 13.000 | m | (W) | X | 5.000 | m | (H)= | 65.00 | m² | ||||
| Resolution | 3324.808184 | pixels | (W) | X | 1279 | pixels | (H)= | 4,251,673 | pixels | ||||
| Maximum power consumption(W/M²) | 700 | ||||||||||||
| Average power consumption(W/M²) | 260 | ||||||||||||
| Drive IC | ICN1065S | ||||||||||||
| Power supply | 5V40A | ||||||||||||
| Brightness | >800-1000 CD per sqaure meter. | ||||||||||||
| Colors | 68.7 billions. | ||||||||||||
| Best Viewing Distance | 10-60 m | ||||||||||||
| Gray Scale | 12-14Bit | ||||||||||||
| Input Power | AC220V/50Hz or AC110V/60Hz | ||||||||||||
| Driving Mode | Constant current 1/16 scan | ||||||||||||
| Refresh Rate | ≥3840-7680Hz | ||||||||||||
| Control distance | CAT5 cable<100m, Single fiber<10km | ||||||||||||
| Control Mode | Synchronization control | ||||||||||||
| Lifetime (50% Brightness) | 100,000 Hours | ||||||||||||
| Running Temperature | –40℃ ～ +60℃ | ||||||||||||
| Humidity | 10% ～70% | ||||||||||||
| Singal Available | DVI,S-VIDEO, RGB, VGA and ETC. | ||||||||||||
| Running Files | Text, Animation, Picture, Video and etc | ||||||||||||
| Controlling Systerm | Nova | ||||||||||||
| Operating Systerm | Windows 7 | ||||||||||||
| Ingress Protection | IP 43 | ||||||||||||
Other parameter
| Dimensions per Unit | 0.6 x 0.6 x 0.12 Meters | ||||
|---|---|---|---|---|---|
| Export Carton Dimensions L/W/H | 1.0 x 0.8 x 0.8 Meters | ||||
|---|---|---|---|---|---|
Details Images
|
|
