Shenzhen Weigu Electronic Technology Co., Ltd. Professional Fine Pitch LED Display Perfect the details of professional standards, service achievements better future!
8 Years
| Ask Lasest Price | |
| Brand Name : | VEGOO |
| Model Number : | VG-P1.538-52scan |
| Certification : | CE ROHC FCC |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 8000sqm per month |
| Delivery Time : | 15-25days |
Products Description
The led indoor display P1.538 SMD1212 screen 640x480mm HUB Intelligent design massive resolution for event is a high-quality product designed to meet the needs of customers. This product offers a range of features and benefits that make it an ideal choice for businesses of all sizes.
Features:
The led indoor display all-in-one integration for easy installation, operation, and maintenance. With options in curved and mobile series.
Benefits:
1.The installation process of the led indoor display all-in-one Smart series is very simple. This simple installation saves time and labor, thereby making users handle theled Indoor display with ease.
2.Quick MaintenanceIn case of failure related to the led indoor board module or the system board, it can be serviced from the front. The led indoor board module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
Product Specifications
Display Parameters | Best Viewing Angle | H:140° ;V:120° | ||
| Recommended Viewing Distance | ≥1.5m | |||
| Driver IC | ICN2163 | |||
| Refresh Rate | 3840Hz | |||
| Brightness of White Balance | 700cd/㎡ | |||
| Input Voltage | 110-220V;AC±10% | |||
| Operating Temperature/Humidity | -20℃ ~+50℃ | |||
| Average Power Consumption | 220w/㎡ | |||
Max. Power Consumption | 500w/㎡ | |||
| Life Time | >100000 hours | |||
| Bad Light rate | <0.0001 | |||
| MTBF | >5000 hours | |||
Unit Module | Item | Parameter | |
| Model Number | VG-P1.538-52scan | ||
| Module Size | 320mm*160mm | ||
| Physical Pitch | 1.538mm | ||
| Physical Density | 422500 dots/m2 | ||
| Pixel Configuration | 1R1G1B | ||
| LED Package Mode | SMD 3IN1-1212 | ||
| Module Resolution | 208dots(W)*104dots(H) | ||
| Max Power Consumption | 25W | ||
| Module Thickness | 18mm | ||
| Module Weight | 490g | ||
| Drive Type | Constant Drive | ||
| Scan Mode | 1/52scan | ||
| Port Type | Customize | ||
Match Cabinet Size | W640mm*H480mm W640mm*H640mm W960mm*H480mm | ||
About Us
Shenzhen Weigu Electronic Technology Co. Ltd (brand: Vegoo) is a new high-tech enterprise who specializes in the R&D, manufacture, sales and service of LED displays. Our factory covers an area of nearly 10,000 square meter, monthly production reach to 8,000 square meters of LED display with 15 sets high-speed SMD machine.
R&D ensure the Performance
Vegoo builds R&D department since 2016 that develop new products to satisfy the customers' demands. All our products have been tested by professional agency and got the certificates of RoHS, CE, EMC, FCC. We providing more thoughtful services to our customers, ensuring product quality and cost-effectiveness.
Widely Used in Various Public Places
Products are widely used in various public places: such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our Products are exported to the United States, Europe, Southeast Asia and other countries, HongKong,Taiwan and other regions.

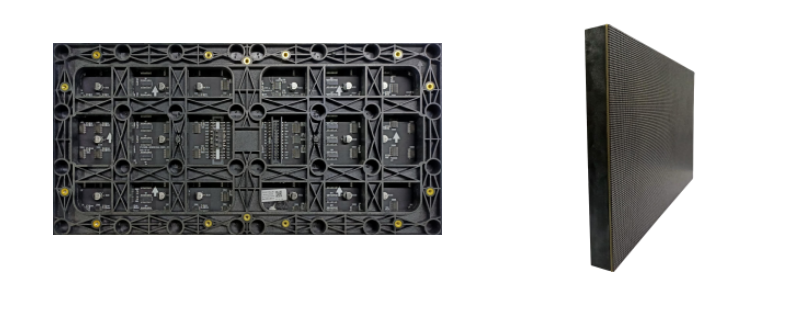

Detail Images
|
|
