| Brand Name : | Vegoo |
| Model Number : | VG-IN-TRANS-P3.91 |
| Certification : | CE/ROHS/FCC/CCC |
| Price : | $537/㎡ |
| Payment Terms : | T/T in advance(xx% deposit, negotiation) |
| Supply Ability : | ≥100㎡ in stock |
| Delivery Time : | 7-15 days |
Details(Advantages, Usage scenarios)
1.Many suppliers only have 15Kg/㎡ products, our products only need about 13Kg/㎡, saving customers shipping costs, thus saving costs.
2.There are high and low brightness, some manufacturers only
recommend 4500cd brightness, we have 2500cd and 4500cd brightness
to choose from.
3.This is a regular series, the price is lower than the high
configuration, although the installation time is longer, but the
transparency is high and the price is low.

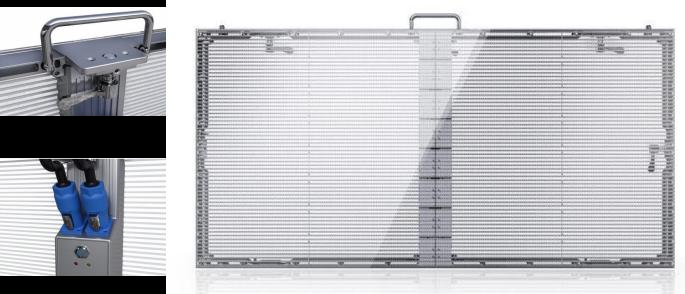

The transparent screen has better effect than the conventional one, and it is more attractive as an advertisement on indoor shop glass or office building glass.
Parameters
| NO. | Parameter | PH3.9-Nomal brightness | PH3.9-High brightness | ||
| 1 | Pixel pitch (mm) | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm |
| 2 | Cabinet size(mm*mm) | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 |
| 3 | Density(dots/m) | 32768 | 32768 | 32768 | 32768 |
| 4 | Packaging style | 1 R1 G1B SMD direct-lit nationstar lamp 2020 | I R1 G1 B SMD direct-lit Anplight lamp 1921 | 1R1G1B SMD direct-lit Anplight lamp 1921 | 1 R1G1 B SMD direct-lit nationstar lamp 1921 |
| 5 | Best view distance(m) | 5~100m | 5~100m | 5~100m | 5~100m |
| 6 | Transparent rate(%) | 65% | 65% | 65% | 65% |
| 7 | View ankle(.) | Horizontal 120°～120°, Vertical 120°～120° | Horizontal 120°～120° Vertical 120°～120° | Horizontal 120°～120° Vertical 120°～120° | Horizontal 120°～120° Vertical 120°～120° |
| 8 | Environment temperature (℃) | storage-40℃~+80℃; working-20℃~+50℃ | storage-40℃~+80℃; working-20℃~+50℃ | storage-40℃~+80℃; working-20℃~+50℃ | storage-40℃~+80℃; working-20℃~+50℃ |
| 9 | Thickness (mm) | 80 | 80 | 80 | 80 |
| 10 | Avg.power consumption (W/m) | 100~150 | 150~200 | 100~150 | 150~200 |
| 11 | Max.power consumption (W/m) | ≤400 | ≤600 | ≤800 | ≤800 |
| 12 | Driving method(scan) | 1/16 | 1/16 | 1/8 | 1/8 |
| 13 | Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| 14 | Brightness(cd/m | ≥800 | ≥1500 | ≥4000 | ≥5500 |
| 15 | Installation | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount | |
|
|
