    Indoor and Outdoor Universal Pixel Pitch 4-4 Transparent LED Screen for Retail and Exhibition

    Ask Lasest Price
    Brand Name : VEGOO
    Model Number : VG-P4-4
    Certification : CE ROHC FCC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 300sqm per month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    Indoor and Outdoor Universal Pixel Pitch 4-4 Transparent LED Screen for Retail and Exhibition

    Key Specifications/ Special Features:

    Transparent LED film screen is a product of the latest technology,Can be widely used advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment


    Features:

    • Full color HD display
    • High permeability, transparency up to 95%
    • Waterproof and windproof, indoor and outdoor universal
    • Ultra-thin, ultra-light, flexible folding and bending
    • High temperature resistance


    FAQ
    1.Q:What is pixel pitch?
    A:Since you can see many square LEDs on the screen ,each of them is an (LED)pixel - in printing house, it is a dot in dpi.The distance between two LEDs is called the pixel pitch,officially put.But shortly,it is the pixel that people quote using mm to measure it.


    2.Q:What is a cabinet?
    A:When we say panel or enclosure made of die-casting aluminium in most cases, or iron material in other cases, it shares the same meaning here with cabinet, which has several LED modules on it to make a complete display unit and will be piled up and fixed on the support structure. There are many sizes of such cabinets, like 500mm*1000mm, 576mm*576mm, 600mm*337.5mm, 640mm*480mm, 768mm*768mm, 960mm*960mm, which are commonly used.


    3.Q:What is a module?
    A:A module is the minimal unit to consist of a cabinet(see Q2).Often,available are 320mm(W)*160mm/320mm(H),192mm*192mm,256mm*128mm/256mm,250mm*250mm,288mm*288mm,150mm*150mm/168.75mm/200mm,etc.


    4.Q:What kind of technical support if offered?
    A:Online support and training throughout the whole project and aftersale service are free. On-site assistance will require expenditure paid by the client-side, which includes round-way tickets, daily wage by local policies, accommodation and meal expenses, replacement and/or repair costs, and other unexpected costs if any that are required.


    Parameters:


    Product specificationP4-4
    Pixel pitch4mm*4mm(x*y)
    Pixel62500 points/m2
    LED specificationSMD1515 (light drive in one)
    Pixel composition1R1G1B
    Module Size1000mm*240mm
    Module Resolution250*60
    Pixel resolution250*250/
    Permeability≥85%
    Box wiring modeInternal wiring (clean back)
    Weight≤ 3KG/m2
    White balance brightness1500cd/
    Peak power consumption800 W/
    Average power consumptionAbout 2800 W/ (depending on the video source)
    Refresh frequency≥3840hz
    Grayscale level16Bit
    Brightness control levelGrade 0-255
    Color temperature3200K-8500K (adjustable)
    Frame change frequency≥60Hz
    Viewing angleH-H140 degrees V-V140 degrees
    Input signalDVI VGA, composite video
    Control screen modeOr synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
    Protection gradeIP30
    Power supply requirementsAC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
    working temperature-20~50
    Theoretical service life100000 hours

    Detail Images

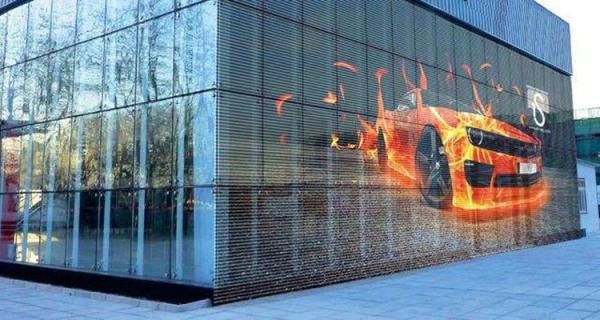

    Quality Indoor and Outdoor Universal Pixel Pitch 4-4 Transparent LED Screen for Retail and Exhibition for sale
